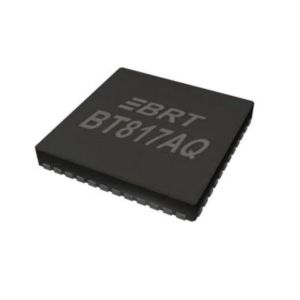

BT817AQ-T Integrated Circuits ICs , Graphics Controller IC With Capacitive Touch Interfaces

Name: BT817AQT Integrated Circuits ICs Graphics Controller IC With Capacitive Touch Interfaces
Brand: Bridgetek
Price: 1 USD

Brand Name : Bridgetek

Model Number : BT817AQ-T

MOQ : 50pcs

Price : Negotiable

Supply Ability : 1000000pcs

Type : Capacitive Touch

Number of Channels : 1 Channel

Operating Supply Voltage : 3.3 V

Operating Supply Current : 30 mA

Minimum Operating Temperature : - 40 C

Maximum Operating Temperature : + 105 C

Mounting Style : SMD/SMT

Package / Case : VQFN-64

Qualification : AEC-Q100

Packaging : Tray

Contact Now

BT817AQ-T Video ICs EVE4 Graphics Controller IC With ASTC, Ext. Capacitive Touch Interfaces. 64 Pin QFN

Bridgetek BT817/8 Advanced Embedded Video Engines

Bridgetek BT817/8 Advanced Embedded Video Engines are easy to use graphic controllers designed for embedded applications to generate high-quality Human Machine Interfaces (HMIs). The BT818 supports a 4-wire resistive touch screen while the BT817 supports a capacitive touch screen with up to 5 touchpoint detection.

The BT817/8 Advanced Embedded Video Engine (EVE) offers high-resolution graphics and video playback that allows users with little expertise to create high-quality displays. The BT817/8 EVE supports I/O voltage from 1.8V to 3.3V, and an internal voltage regulator supplies 1.2V to the digital core.

The Bridgetek BT817/8 Advanced Embedded Video Engines are available in a compact Pb-free, VQFN-64 package and has an extended operating temperature range of -40°C to +85°C.

FEATURES

Graphic control, audio control, and touch control interface
Supports multiple widgets
Built-in graphic operations
Supports Adaptive Scalable Texture Compression (ASTC) format
Supports 4-wire resistive touch screen (BT818) or capacitive touch screen with up to 5 touch point detection (BT817)
Enhanced sketch processing
Built-in 12MHz crystal oscillator with PLL providing programmable system clock up to 72MHz

1920x480, 1440x540, 1280x800, 1024x600, 800x600, 800x480, 480x272, 320x240 Supported LCD resolutions
Supports I/O voltage from 1.8V to 3.3V (5V tolerant)
Internal voltage regulator supplies 1.2V to the digital core
Video RGB parallel output; configurable to support PCLK up to 96MHz with separate PLL(PLL2), and R/G/B output of 1 to 8 bits (including
RGB565, RGB666, and RGB888)
Supports playback of motion-JPEG encoded AVI videos
Mono audio channel output with Sigma-delta
Built-in sound synthesizer

APPLICATIONS

Point of sales machines
Multi-function printers
Instrumentation
Home security systems
Graphic touch pad – remote, dial pad
Tele / video conference systems
Phones and switchboards
Medical appliances
Blood pressure displays
Heart monitors
Glucose level displays

Breathalyzers
Gas chromatographs
Power meter
Home appliance devices
Set-top box
Thermostats
Sprinkler system displays
GPS / Satnav
Vending machine control panels
Elevator controls

BLOCK DIAGRAM
